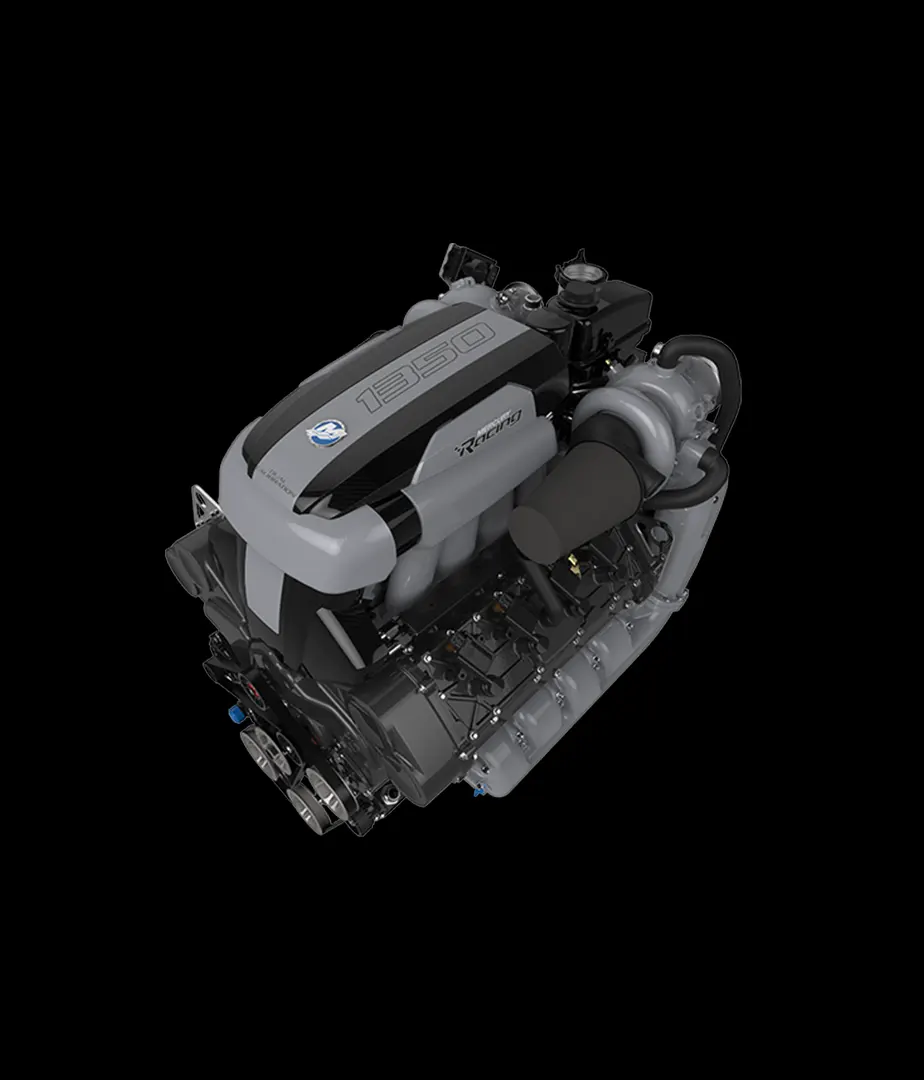

Dual Cal 1350



Dual Cal 1350

The Dual Cal 1350 sterndrive features the Mercury Racing-exclusive dual fuel calibration technology, with its power output controlled via interchangeable electronic key fobs at the dash. The engine pumps out its advertised one thousand three hundred and fifty horsepower on 91 octane fuel when the 1350 horsepower fob is engaged. Engaging the 1100 horsepower fob reduces the octane requirement to 89 or rec 90 to allow operation in areas where premium fuel availability is unknown. Consumers are responsible for making sure they have the correct fuel grade in their tank when running in 1350 mode. Both fuel calibrations provide maximum torque and efficiency and are designed to optimize engine performance at each power level.

Specifications Of Dual Cal 1350

1350
RATED HP AT TRANSOM
6000-6500
FULL THROTTLE RPM
9.0 L
DISPLACEMENT
7.8:1
COMPRESSION RATIO
Name Description
BORE & STROKE 9.0 L/552 CID
CYLINDERS / ENGINE CONFIGURATION V8
ALTERNATOR 95 AMP
FUEL REQUIREMENT 91 Octane For 1350 H.P. Calibration
FUEL SYSTEM Sequential Fuel Injection
GEAR RATIO Application Dependent
WARRANTY 10 Hour Warranty At The 1550 Power Level (At 2000 RPM Or Above) Or 1 Year, Whichever Comes First.
CONTROLLER PCM09
TRANSMISSION Mercury Racinq Dry-Sump Hydraulic
TRANSMISSION Electronic Fuel Injection (EFI) Computer Controlled With Advanced Range Optimization
DRIVE UNIT M8
LENGTH - FROM BACK OF BLOCK 31 IN
WIDTH 35 IN
HEIGHT 29 IN
WEIGHT 1720 LBS
