200 APX
- |
- 200 APX
A New Breed
The Mercury Racing 200 APX is a powerful V6 fourstroke outboard designed for UIM F2 and APBA OPC tunnel boat racing. Rated at more than 200 horsepower, the 200 APX outboard offers racers a very durable powerhead and the latest in four-stroke engine technology, while reducing exhaust emissions by 90 percent compared to the legacy two-stroke competition outboards.
Overdrive
How we make power: A 3.4-liter V6 powerhead and deep-breathing double overhead cam/four-value architecture is tuned to wind up to 6800 rpm. Compression ration is boosted to 11:1. A heavy dose of dense, cool air is ducted directly to intake.
The New Breed

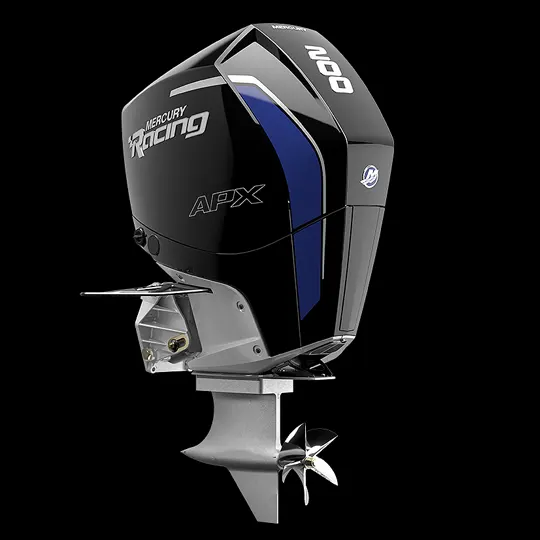

MR-200APX-Scroller-Cowl-01 How we make power: A 3.4-liter V6 powerhead and deep-breathing double overhead cam/four-valve architecture is tuned to wind up to 6800 rpm. Compression ratio is boosted to 11:1. A heavy dose of dense, cool air is ducted directly to the intake.
An evolved Mercury Racing Super Speed Master (IV SSM) outboard gearcase is direct-drive with no neutral or reverse shifting.
The four-stroke Mercury Racing 200 APX reduces exhaust emissions by 90 percent compared to a two-stroke racing outboard of similar performance. Unlike those two-stroke motors, the 200 APX will require very little maintenance between races, and is designed to perform on 91-octane (98 RON w/ E10 max) pump fuel.

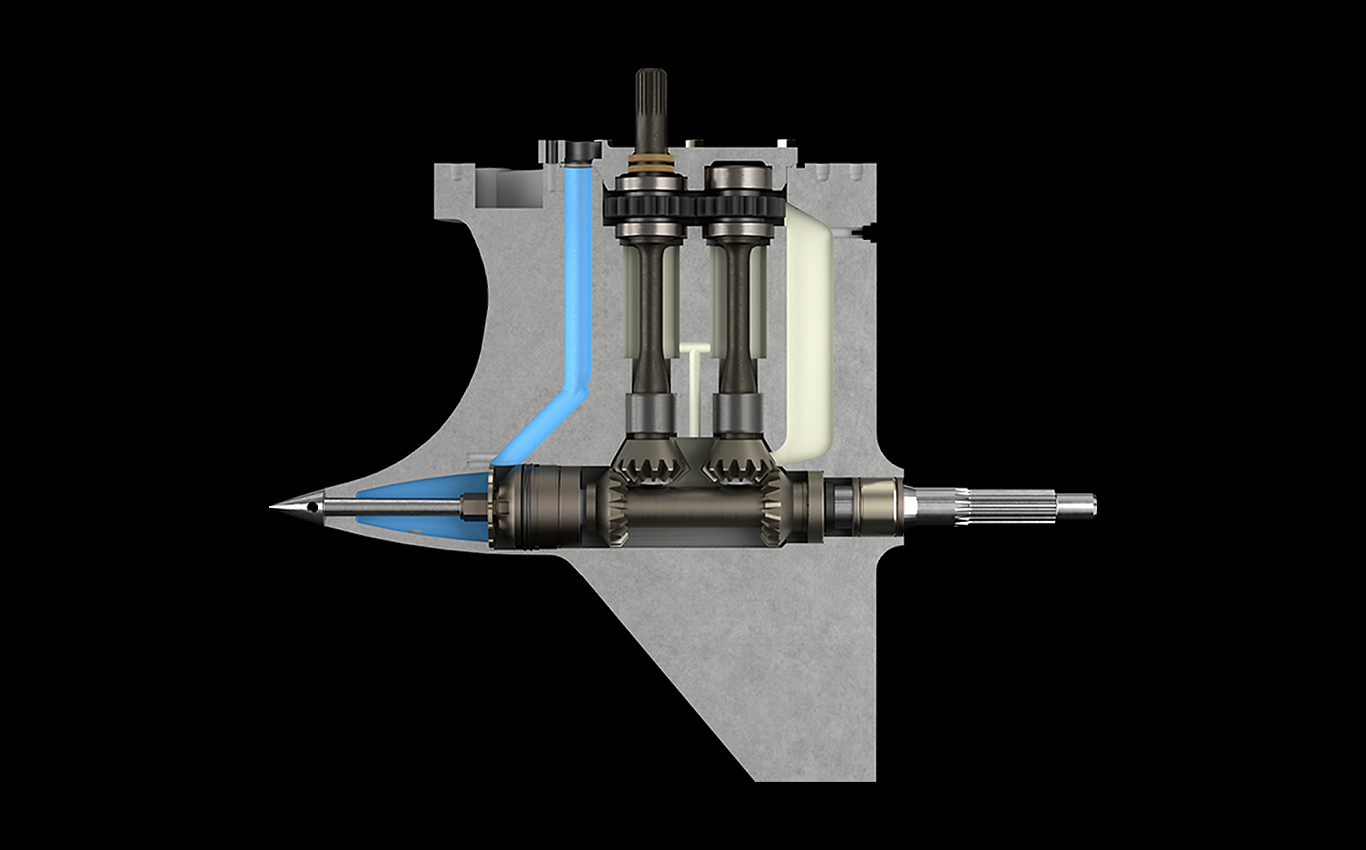

Gearcase
An evolved Mercury Racing Super Speed Master (IV SSM) outboard gear case is direct-drive with no neutral or reverse shifting.
Specifications Of 200-APX
|
6800
FULL THROTTLE RPM |
200
RATED HP |
V6
CYLINDERS |
3.4L
DISPLACEMENT |
| Name | Description |
|---|---|
| IDLE RPM | 750 |
| MAX TRIM RANGE | 13° |
| MAX TILT RANGE | N/A |
| LIFT RANGE (MM) | 26 |
| COOLING SYSTEM | Water-Cooled With Thermostat Control And Integrated Pressure Relief |
| ENGINE MANAGEMENT SYSTEM | Competition Spec SmartCraft PCM 112 |
| ENGINE PROTECTION SYSTEM | SmartCraft Engine Guardian With Competition Calibration |
| EXHAUST SYSTEM | Above Water |
| LUBRICATION SYSTEM | Structural Wet Sump With Integrated Baffle System |
| OIL CAPACITY | 6.6 L |
| STEERING ANGLE | + / - 30° |
| GEAR SHIFT | N/A |
| OVERDRIVE RATIO | 0.818 (22:18) |
| OVERALL DRIVE RATIO | 0.927 |
